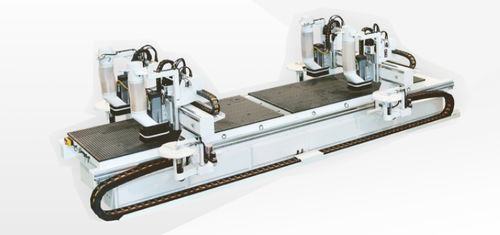

3-axis CNC machining center NCG2T2C4

verticalgantryfour-spindle

NCG2T2C4 is specially designed for cutting, flexible and high efficient for customized production due to 4 sets of powerful 12kw main spindle and ATC 8 working on two gantries and 2 working area, , this is ideal machine to combine with robots to build cutting working cell • Designed with 2 gantries, 2+2 powerful 12kw Italian main spindles creating 2 working stations for multiple efficiency in panel processing; • 4 sets of ATC 8 cooperate with 4 main spindles; • Advanced FCC software working with main spindle synchronous and asynchronous, processing work piece in most optimal path and maximizing the efficiency; • Each gantry activated by two servo motors for stable processing and high accuracy. • Table divided by sections, hence provided with sufficient vacuum everywhere. • Table divided by sections, hence provided with sufficient vacuum everywhere. Table size 2800×1230mm×2 Main spindle power 12kw×4 Max rotating speed 24000rpm Vertical drills 8×4 Vacuum pump 7.5kw Suction flow rate 250m3/h×2 Dust extraction φ200mm×4 Total power 88kw×2 Overall dimension 6520×2600×2500mm Net weight 4750kg
