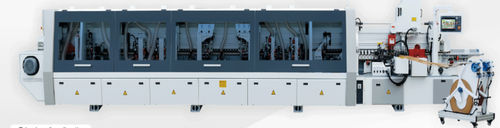

Automatic edge-banding machine NB7PCGM-PC

for panels

• Edge Banding Machine with V-belt & Double Gluing Units NB7PCGM-PC • Highlights • PC control with intelligent and user-friendly software, machine adjustment can be done by just scan QR code by bar code reader, easy and efficient. • With 2 pre-melt gluing units, switching from one of two glue colors fast to match edge tape, optional to choose PUR. Panel length ≥120mm（corner trim on≥200mm） Panel width ≥80mm Min panel size 200×80mm（corner trim on） Panel thickness 9-60mm Edge tape thickness 0.4-3mm Feeding speed 18/22/26m/min Feeding speed(corner trimming on) 22m/min Dust extraction φ125mm×8 Total power 42kw Overall dimension 11200×1050×1850mm Net weight 6110kg
