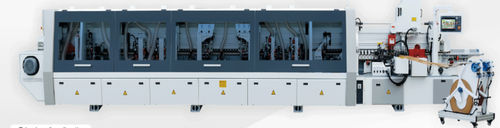

Automatic edge-banding machine NB7CJ

for panelswith glue applicator

• Heavy duty machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming ; • Merges numerous functions in one machine, including pre-milling, pre-heating, glue pot, snipping, end trimming, rough trimming, fine trimming, corner trimming, scraping and buffing, edge banding work can be done in one process. • Automatic standby, one-button wake-up device and energy saving; • Most electric components are in world famous brand. Panel length ≥120mm（开跟踪≥200mm） Panel width ≥80mm Min panel size 120×80mm Panel thickness 9-60mm Edge tape thickness 0.4-3mm Feeding speed 16/20/24m/min Feeding speed(corner trimming on) ---- Dust extraction φ125mm×4 Total power 24kw Overall dimension 7700×1050×1650mm Net weight 2800kg
