Automatic edge-banding machine NB6CJ
for panelswith glue applicator

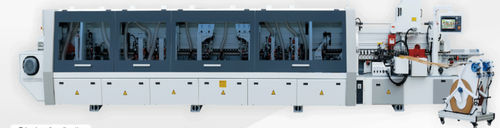

Automatic edge-banding machine - NB6CJ - Nanxing Machinery - for panels / with glue applicator

Automatic edge-banding machine - NB6CJ - Nanxing Machinery - for panels / with glue applicator - image - 2

Automatic edge-banding machine - NB6CJ - Nanxing Machinery - for panels / with glue applicator - image - 3

Automatic edge-banding machine - NB6CJ - Nanxing Machinery - for panels / with glue applicator - image - 4

Automatic edge-banding machine - NB6CJ - Nanxing Machinery - for panels / with glue applicator - image - 5

Add to favorites

Compare this product

Characteristics

Operational mode

automatic

Applications

for panels

Other characteristics

with glue applicator

Edge band thickness

Min.: 0.4 mm
(0.02 in)

Max.: 3 mm
(0.12 in)

Description

• Heavy duty machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming ; • Pre-heating before gluing warms the work piece edge, the glue could well melt during gluing, especially suitable for wet or cold zones. • Corner trimming unit is designed to trim 4 corners to achieve R circular arc radius. • Automatic standby, one-button wake-up device and energy saving; • Most electric components are in world famous brand. Panel length ≥120mm（corner trim on≥200mm） Panel width ≥80mm Min panel size 120×80mm Panel thickness 9-60mm Edge tape thickness 0.4-3mm Feeding speed 16/20/24m/min Feeding speed(corner trimming on) ---- Dust extraction φ125mm×3 Total power 16.3kw Overall dimension 6600×1050×1650mm Net weight 2430kg
