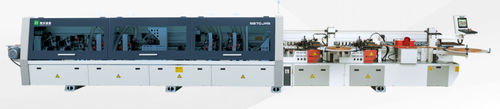

Automatic edge-banding machine NB7CJMN

for panelswith glue applicator

• Compact press rollers cooperate with additional assistance rollers on front and in between make it possible to do edge banding work for min 30mm work piece in width. • Two sets of gluing, fine trimming, scraping and buffing units make it easy and fast to switch between dark and light color glue which meet flexible edge banding requirements. Cutters of one set of fine trimming, scraping are able to move backwards automatically if changing to the other color glue, set-up time tends to zero. Low investment, big benefits. • With additional pre-milling and corner trimming function. • Heavy duty machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming ; • Most electric components are in world famous brand. Narrow long edge 40×200×9mm Narrow short edge 45×200×9mm Panel thickness(narrow edge Corner trim on) ≤25mm Panel thickness 9-60mm Edge tape thickness 0.4-3mm Feed speed 16/20/24m/min Feed speed(narrow edge Corner trim on) 16m/min Dust extraction φ125mm×5 Total power 30kw Overall dimension 9800×1050×1650mm Net weight 3670kg
