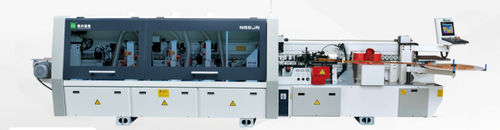

Automatic edge-banding machine NB5JNfor panelswith glue applicator
Add to favorites
Compare this product
Characteristics
- Operational mode
- automatic
- Applications
- for panels
- Other characteristics
- with glue applicator
- Edge band thickness
Max.: 3 mm
(0.12 in)Min.: 0.4 mm
(0.02 in)
Description
• Heavy duty machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming ;
• Compact press rollers cooperate with additional assistance rollers on front and in between make it possible to do edge banding work for min 30mm work piece in width.
• Most electric components are in world famous brand
Panel length ≥120mm
Panel width ≥30mm
Min panel size 300×30mm（long edge）
Panel thickness 9-60mm
Edge tape thickness 0.4-3mm
Feeding speed 16/18/20m/min
Dust extraction φ125mm×3
Total power 14.4kw
Overall dimension 5500×1450×1650mm
Net weight 2250kg
