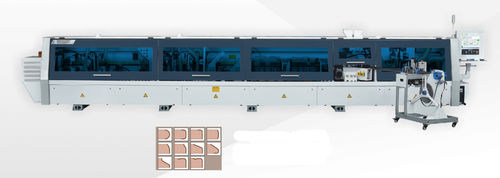

Automatic edge-banding machine NB875Efor panelswith glue applicator
Add to favorites
Compare this product
Characteristics
- Operational mode
- automatic
- Applications
- for panels
- Other characteristics
- with glue applicator
- Edge band thickness
Max.: 2 mm
(0.08 in)Min.: 0.4 mm
(0.02 in)
Description
• Heavy duty machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming ;
• Selectable different profiles by adjusting tool and edge pressing. Tool height adjust just by one button, Fast and convenient.
• Automatically switch among profile edge, straight edge and bevel edge.
• PC control
• Most electric components are in world famous brand.
Panel length
≥120mm(straight edge)
≥350mm(soft forming)
Panel width ≥120mm
Min panel size
≥280×120mm(straight edge)
≥350×120mm(soft forming)
Panel thickness
≥9-60mm(straight edge)
≥18-25mm (soft forming)
Edge tape thickness 0.4-2mm
Feeding speed
12-20m/min(straight edge)
12-14m/min(soft forming)
Bevel angle 0-60°(soft forming)
Min size of inclined right-angled sides 3-20mm(soft forming)
Dust extraction φ125mm×7
Total power 35kw
Overall dimension 9950×1940×1780mm
Net weight 5000kg
