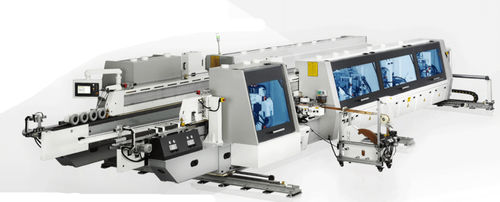

Automatic edge-banding machine NB8CS2IIPTN

for panels

• Heavy duty machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming ; • Panels evenly pressed by fiber reinforced V-belt to ensure smooth conveying, clean with no marks, resulting excellent edge banding quality; Auto raised up positioning by “dog head” in conveying chain help to convey narrow long work piece. • Width adjustment and positioning by 2 ball screw rods on two ends which were driven by precise servo motor guarantee the adjusting precision. Auto adjusting in between mechanism according to panel width; • Hogging device with two diamond cutters to crash 10mm edge surface; • Fine trimming and scraping adjustment by pneumatic control. • 4 motors corner trimming，Precise corner trimming for better finish and speed. Max panel size 1220×2440mm Min panel size 285×285mm Panel thickness 9-60mm Edge tape thickness 0.4-3mm Feeding speed 16-20m/min Dust extraction φ125mm×20 Total power 105kw Overall dimension 12000×4400×1950mm Net weight 13800kg
