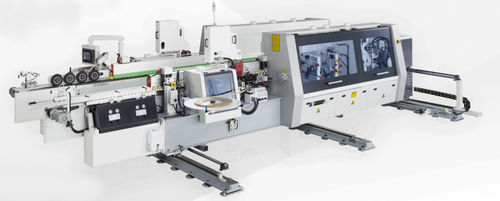

Automatic edge-banding machine NB6S2II

for panelswith glue applicator

• Two sides edge banding in one process; • Heavy duty machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming ; • Width adjustment and positioning by 2 ball screw rods on two ends which were driven by precise servo motor guarantee the adjusting precision. Auto adjusting in between mechanism according to panel width; • Auto raised up positioning by “dog head” in conveying chain help to convey narrow long work piece. • Large pre-melt tank allows sufficient glue for even fast continuous edge banding; Max panel size 1220×2440mm Min panel size 285×285mm Panel thickness 9-60mm Edge tape thickness 0.4-3mm Feeding speed 16-20m/min Dust extraction φ125mm×8 Total power 37.6kw Overall dimension 7800×4400×1950mm Net weight 10170kg
