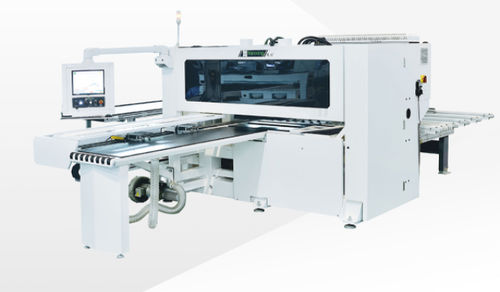

CNC drilling machine NCB612DX

for railshigh precisioncompact

• High technology compact machine making possible to drill holes on 6 sides, groove top and bottom, route shapes in one process without necessary of turning panel. Continuous working for various batch sizes and patterns to fit complex production. High accuracy and processing effective, basically no complaints. • Long guiding rail with dual clampers. Cleaning device in between to remove possible chips and dust on workpiece surface for tightly grasping. Special design on bottom, clampers will fall down to make sure workpiece and the unloading table are at same level to prevent possible small scratch. • Two boring blocks and one 3.5kw main spindle on top processing unit; One boring block and one 3.5kw main spindle on bottom processing unit; Well arranged drills layout makes it possible to do mirror processing at the same time. • The accurate movement of each axis is ensured by the high quality servo motors. Fast and precise. Max travelling speed: X/U/Y/Z:135/135/75/30m/min Panel length 250-2400mm Panel width 30-1200mm Panel thickness 10-50mm Max speed 135/135/75/30m/min Main spindle power 3.5kw×2 Max rotation speed 18000rpm Upper vert.drill 16×2 Upper vert. drill X direction：4×2 Y direction：2×2 Lower vert.drill 10 Rotation speed 4000rpm Dust collector Top dust collectorφ150mm×2 Bottom dust collectorφ125mm Total power 22.3kw Overall dimension 5700×2960×2190mm Net weight 3750kg
