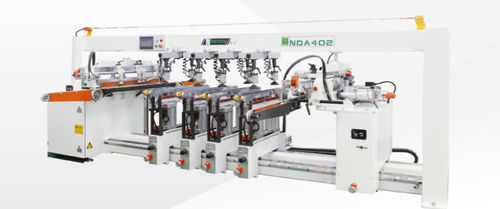

CNC drilling machine NDA402

verticalhorizontalpneumatic

• Strong bed structure machine body of high stability and longer service life; • The design of 4 boring rows on bottom and 2 rows on side is suitable for most boring requirements, especially for mass production; • Auto feed-in and feed-out with 3 sections for continuous working with shortest waiting time; • Two boring blocks controlled by separate motors in each row. Boring blocks can rotate to 90 degrees • Pneumatic locking device applied at vertical rows, adjusting or changing boring block will be much faster and precise; Max panel width 2650mm Min. panel width 250mm Max. panel thickness 70mm Spacing of drills 32mm Max vertical boring depth 70mm Max horizontal boring depth 40mm Total power 13.4kw Overall dimension 4790×2635×1575mm Approx. weight 2400kg
