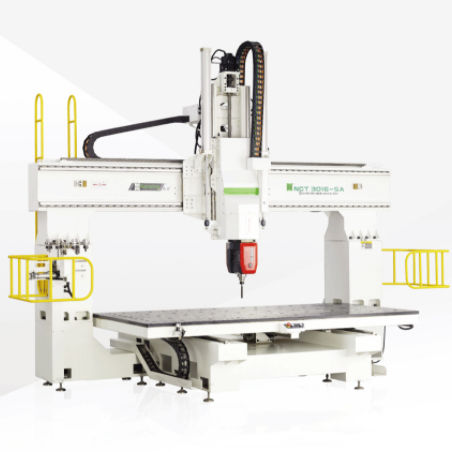

5-axis CNC machining center NCT3016-5A

verticalgantrywith moving table

With moving table and five axis NCT3016-5A is one of the CNC machines provides high precision, high performance, and high rigidity machine body, suitable for solid wood, aluminum, plastic, and other composite materials. Gantry structure frame and Italian main spindle (High power 5 axis water cooling main spindle) can give guarantee working on solid wood in a high speed. Italian OSAI control system and ALPHACAM are used to make curved surfaces freely by high requirements. Servo driven ATC 16 and various clamps can be chosen as option, other components are available to be customized according to requirements. • Heavy duty gantry frame structure and machine body and most mechanical machine parts are proceed by advanced CNC machines for higher stability and longer service life without deforming ; • Powerful 13.5kw water cooling spindle with rotating speed up to 24000rpm. The angle of C axis can reach ±245°.B axis ±120°. Coupler type HSK-63F making contact between tool holder and clamp closely, fix tightly, fast for 2 sets of ATC 8; • Spindle head is available to work continuously base on this self-cooling system. • Big moving working tables in size 3050×1600mm to meet various processing requirements; • Intelligent programing software offers max convenience of operation.
