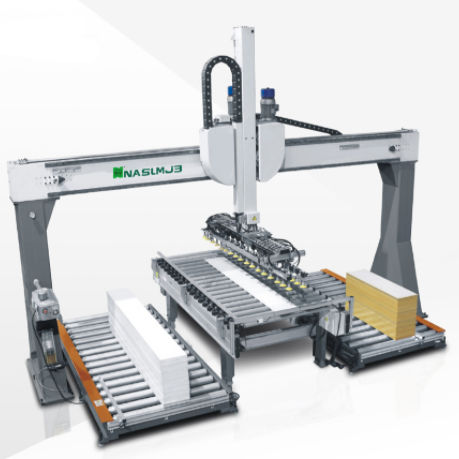

Automatic stacker NASLMJ3

feederautomatic

• Auto feeding or stacking is selectable, save labor and in high efficiency; • Strong gantry frame structure is able to support max 60kg big panel; • Two stacking areas for two kinds of different work pieces; • Full covered drag chain prevents electric wires from dust and chips for longer service life; • Lubrication system to grease transmission parts easily; Panel length 250-2440mm Panel width 250-1300mm Panel thickness 9-60mm Max panel weight 60kg Working frequency ≤7times/min Total power 9.5kw Overall dimension 5800×3000×3500mm Net weight 4000kg
