Piston compressor Extreme 2D
airelectrically-poweredportable

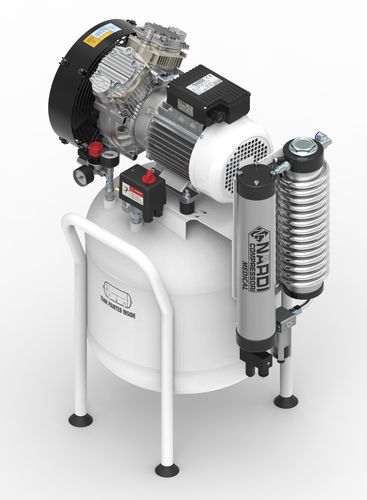

Piston compressor - Extreme 2D - NARDI COMPRESSORI - air / electrically-powered / portable
Piston compressor - Extreme 2D - NARDI COMPRESSORI - air / electrically-powered / portable
Piston compressor - Extreme 2D - NARDI COMPRESSORI - air / electrically-powered / portable - image - 2
Add to favorites
Compare this product


Characteristics

Technology
piston
Type
air
Power source
electrically-powered
Portability
portable
Lubrication
oil-free
Application domain
for dental applications, for chemical applications
Applications
process
Other characteristics
compact, low-noise, vertical tank, small, light
Tank volume

50 l
(13.2 gal)

Pressure

8 bar, 10 bar
(116.03 psi, 145.04 psi)

Flow

200 l/min, 240 l/min, 350 l/min, 480 l/min, 600 l/min
(52.83 us gal/min, 63.4 us gal/min, 92.46 us gal/min, 126.8 us gal/min, 158.5 us gal/min)

Power

0.5 kW, 1.1 kW, 1.5 kW, 1.84 kW, 2.2 kW
(0.68 hp, 1.5 hp, 2.04 hp, 2.5 hp, 2.99 hp)

Length

46 cm, 59 cm, 64 cm
(18 in, 23 in, 25 in)

Width

43 cm, 45 cm
(17 in, 18 in)

Height

83 cm, 89 cm
(33 in, 35 in)

Weight

Max.: 62 kg
(136.7 lb)

Min.: 36.5 kg
(80.5 lb)

Noise level

72 dB, 73 dB

Description

The NARDI COMPRESSORI MEDICAL full range is designed and developed by expert technicians specifically for the dental and medical industry. The air tanks of this whole compressor line are painted internally with corrosion inhibiting epoxy electrostatic powder and the compressors are equipped with dryers that absorb humidity and produce a moisture-free and clean air quality. NARDI also avails of antibacterial filters to meet international standards required by the niche markets we cater for. The materials and components used to manifacture these modern, strong and silent compressors guarantee great performance and reliability and they are all certified as CLASS IIA MEDICAL devices and recognised by the Italian Ministry of Health. This oilless MEDICAL compressor was developed by NARDI to cater for dental clinics, medical analysis and chemical labs operating with clean and dry air. This EXTREME 2D model can come with an efficient filtering system and a small condensation separator on its air outlet. The desiccant dryer manifactured in-house by NARDI can regenerate the absorbing elements automatically after each filling process. With its vertical 50 litre air receiver, coated internally with an anti-corrosion product, this compressor is one of our best sellers since it can be ordered both in single and three-phase versions with working pressures of 8 or 10BAR. Characteristics With activated charcoal dryer or without dryer. 01 Compressors with cast aluminum case 02 Light and compact; unique system of connecting rods for perfect balance 03 Heat treatment of components to extend the life and performance
