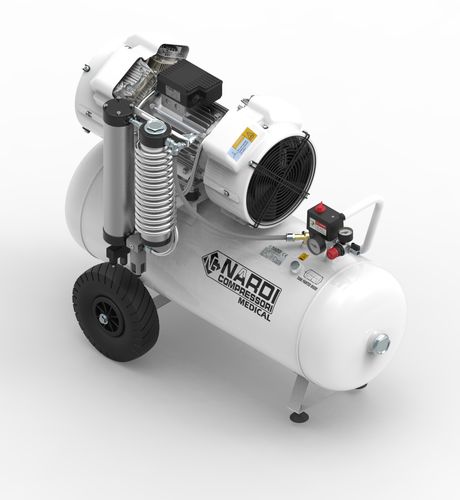

Piston compressor Extreme 4D
airelectrically-poweredon casters

Piston compressor - Extreme 4D - NARDI COMPRESSORI - air / electrically-powered / on casters
Piston compressor - Extreme 4D - NARDI COMPRESSORI - air / electrically-powered / on casters
Piston compressor - Extreme 4D - NARDI COMPRESSORI - air / electrically-powered / on casters - image - 2
Piston compressor - Extreme 4D - NARDI COMPRESSORI - air / electrically-powered / on casters - image - 3
Piston compressor - Extreme 4D - NARDI COMPRESSORI - air / electrically-powered / on casters - image - 4
Add to favorites
Compare this product


Characteristics

Technology
piston
Type
air
Power source
electrically-powered
Portability
on casters
Lubrication
oil-free
Application domain
industrial, for medical applications, for chemical applications
Other characteristics
compact, low-noise, tank-mounted, light
Tank volume

90 l
(23.8 gal)

Pressure

8 bar, 10 bar
(116.03 psi, 145.04 psi)

Flow

350 l/min, 480 l/min, 600 l/min
(92.46 us gal/min, 126.8 us gal/min, 158.5 us gal/min)

Power

1.5 kW, 1.84 kW, 2.2 kW
(2.04 hp, 2.5 hp, 2.99 hp)

Length

110 cm
(43 in)

Width

54 cm, 59 cm
(21 in, 23 in)

Height

81 cm
(32 in)

Weight

Min.: 67 kg
(147.7 lb)

Max.: 88 kg
(194 lb)

Noise level

73 dB, 79 dB

Description

The NARDI COMPRESSORI MEDICAL full range is designed and developed by expert technicians specifically for the dental and medical industry. The air tanks of this whole compressor line are painted internally with corrosion inhibiting epoxy electrostatic powder and the compressors are equipped with dryers that absorb humidity and produce a moisture-free and clean air quality. NARDI also avails of antibacterial filters to meet international standards required by the niche markets we cater for. The materials and components used to manifacture these modern, strong and silent compressors guarantee great performance and reliability and they are all certified as CLASS IIA MEDICAL devices and recognised by the Italian Ministry of Health. This EXTREME 4D oilless MEDICAL compressor manufactured by NARDI is designed to meet dental and medical industry trends in machines offering clean and dry air with longer run times. This 90L model with its horizontal receiver mounted on wheels is also available with a highly efficient filtering system and customers can choose among three different desiccant dryers manifactured in-house by NARDI. This low noise range, available in single-phase and three-phase versions, with max working pressure performance from 8 to 10BAR is the perfect working companion. Characteristics 01 Compressors with cast aluminum case 02 Light and compact; unique system of connecting rods for perfect balance 03 Heat treatment of components to extend the life and performance 04 Advanced compression technology, in continuous development 05 Stainless steel valves 06 Tanks painted approved, with handles and wheels for easy transport
