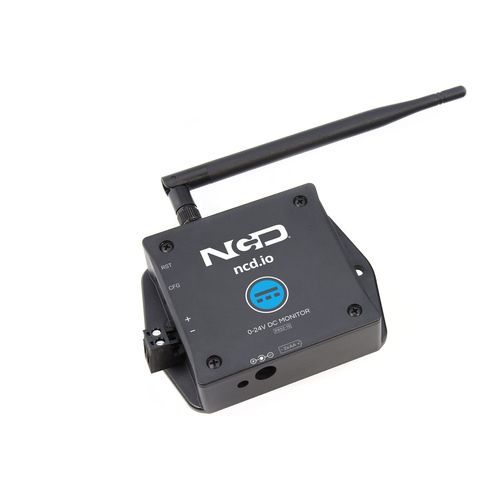

Voltage monitoring system PR52-10A

wirelessIoT

Highlights • - Industrial Grade 1 Channel 0-24VDC Analog to Digital Converter • - 10-bit Resolution with ±2 LSB Absolute Accuracy • - Auto ADC sample Transmission on Analog Voltage Change • - User-Defined 10% Analog Voltage Change Detection • - 2 Mile Line-of-Sight Range with On-Board Antenna • - Superior LOS Range of up to 28 Miles with High-Gain Antennas • - Interface to Raspberry Pi, Microsoft® Azure®, Arduino and More • - Example Software for Visual Studio and LabVIEW® • - Wireless Mesh Networking using DigiMesh® • - Open Communication Protocol for Easy Software Integration • - Small 3″ x 3″ Form Factor Wireless 0-24V ADC • - Power-Efficient Sleep Mode, Up to 10 Year Battery Life - - User Configurable Sleep duration - - Up to 500,000 Transmissions from 2 AA Batteries • - Includes Battery Level with Every Transmission • - Validates and Retries Lost Communication Packets Long Range IoT Wireless 0-24VDC Voltage Monitor Introducing NCD’s Long Range IoT Wireless 0-24VDC Voltage Monitor with 10-Bit Analog to Digital Converter (ADC), boasting up to a 2 Mile range using a wireless mesh networking architecture. This voltage monitor incorporates a 1 channel ADC that samples analog inputs at user defined intervals and transmits voltage readings to local gateways and modems. This device enters a low-power sleep mode to minimize power consumption between transmissions. This Wireless 0-24VDC Voltage Monitor can measure up to 24V DC voltage input with the ability to detect a change in voltage every 7 seconds (user configurable) and sending out ADC samples if the change in voltage is greater than 10% (user configurable).
