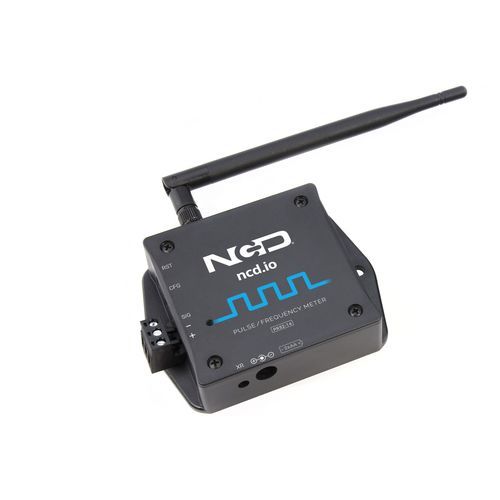

Frequency counter PR52-14

Highlights • - Industrial Grade Wireless Frequency Meter • - 24-bit Frequency with Pre-Processed output in Millihertz • - Frequency Range 2 Hz to 10k Hz • - Internal Processor Frequency Resolution ±1% Error • - 16-bit Duty Cycle Pre-Processed Output • - Duty Cycle Range of 10% to 90% with 0.02 to 0.25% Error • - Frequency and Duty Cycle Change Detection Transmission • - Configurable Frequency and Duty Cycle Change Detection Limits • - 2 Mile Line-of-Sight Range with On-Board Antenna • - Superior LOS Range of up to 28 Miles with High-Gain Antennas • - Interface to Raspberry Pi, Microsoft® Azure®, Losant and More • - Example Software for Visual Studio and LabVIEW® • - Wireless Mesh Networking using DigiMesh® • - Open Communication Protocol for Easy Software Integration • - Small 3″ x 3″ Form Factor Wireless Frequency Meter • - Power-Efficient Sleep Mode, Up to 10 Year Battery Life o - User Configurable Sleep duration o - Up to 500,000 Transmissions from 2 AA Batteries • - Includes Battery Level with Every Transmission • - Validates and Retries Lost Communication Packets IoT Long Range Wireless Pulse Frequency Meter Sensor Introducing NCD’s Long Range IoT Wireless Pulse/Frequency Meter, boasting up to a 2 Mile range using a wireless mesh networking architecture. It samples frequency and duty cycle and internally adjusts its time base to maximize output resolution and minimize error. The complexities of adaptive frequency measurement are completely abstracted from the user, as this device delivers full pre-processed transmissions on at a user defined interval. This device enters a ultra-low-power state between transmissions to preserve battery life.
