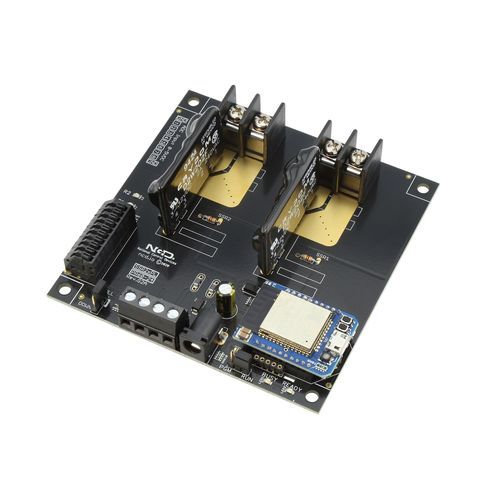

Relay controller card

EthernetRS-232USB

Highlights Control 2 On-Board Solid-State Relays via Wireless or Computer Control Available with Solid State Relays for AC or DC Switching Applications On-Board LEDs Display Relay Status, Busy State and Ready State Use Base Station Software to Help you Learn the ProXR Command Set Modular Communications Interface Supports Many Popular Communication Modules: WiFi, Bluetooth, Ethernet, WebPage, Industrial Wireless, USB, RS-232 and More 16 Background Timers Can be Assigned to Any of the On-Board Relays Server Reboot, Watchdog, & Keep Alive Duration/Pulse Timing Command Set Control One Relay at a Time or All Relays Simultaneously Integrated 8-Channel 8/10-Bit Analog to Digital Converter Inputs Read Sensors or Manually Control Relays with Integrated ADC Inputs 2-Channel SPST Solid-State Relay Controller with 8-Channel ADC This ProXR Lite solid-state relay controller is capable of switching 2 on-board SPST relays. Choose between AC or DC switching, Random or Zero Cross Turn-On, as well as a wide variety of electrical characteristics. Customize this controller exactly the way you need it when ordering. Each SPST relay includes 2 screw terminals for normally open and common connections. This controller features a modular communications interface, capable of accepting USB, RS-232, Ethernet, WiFi, Bluetooth, Industrial Wireless communication modules, and more. On-Board Analog to Digital Converters allow monitoring of 8 inputs at 8 or 10-Bit resolution.
