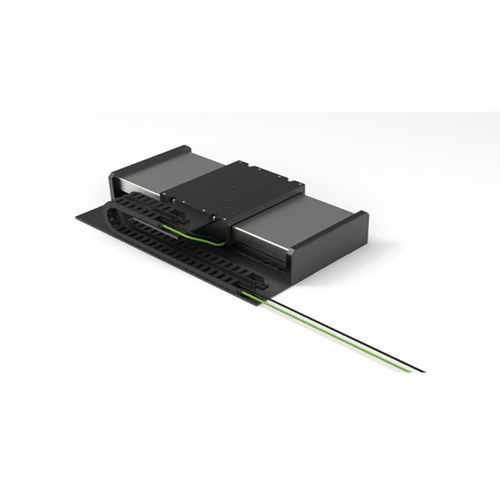

Linear stage E-U1LM200-XX Series

XYXYZball bearing

E-U1LM200-XX Series Linear Motor Stages Short Description: E-U1LM200 Precision Linear Stage High Velocity and Precision Magnetic Direct Drive ● Travel ranges to 800 mm ● Velocity up to 2 m/s ● stand encoder with 100 nm resolution or 1vpp analog with 4.88nm resolution ● Highest precision with linear encoder: Minimum incremental motion 100 nm ● High guiding accuracy ● Compact design with 200 mm width E-U1LM200-XX series is a cost-effective industrial linear motor displacement platform produced by our PRECISION-STAGE, it is a linear stage in its portfolio for industrial solutions that has a high load capacity and high dynamics. Its design is consistently geared to demanding industrial conditions and it is characterized by high stiffness and the use of high-quality components: Recirculating ball bearing guides, 3-phase linear motor, incremental linear encoder. The high resolution of the encoders allows an excellent tracking performance, small tracking errors, and short settling times. Industry-compatible connectors offer a fast and secure connectivity. The optional motion platform offers advantages especially in XY or XYZ combinations. Three-phase magnetic direct drives use no mechanical parts in the drivetrain and transmit drive force directly to the motion platform without friction. The drives enable high speeds and high accelerations. Ironcore motors are ideal for positioning tasks with extremely high demands on precision, since they do not interact negatively with permanent magnets. This results in a smooth run even at the lowest speeds and at the same time, no vibrations at high speeds.
