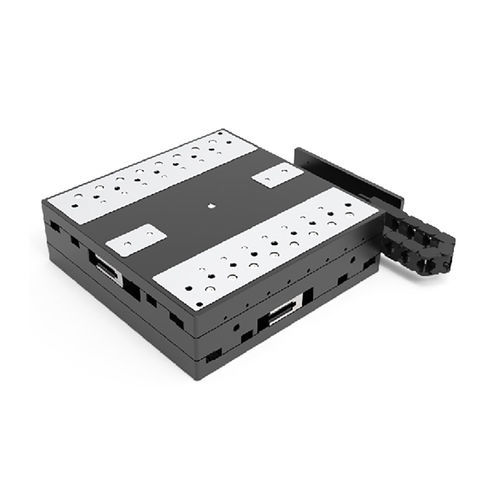

Linear servo-motor stage LMT-XY series

XY2-axismulti-axis

E-LMT-XY (High precisionLinear Motor Stage) XY Linear motor motion Stage Short Description: ● Travel range 100 mm × 100 mm or 200 mm × 200 mm ● Unidirectional repeatability to 0.3 µm ● Ironless 3-phase linear motor ● Velocity to 500 mm/s Incremental ● linear encoder with 4.88 nm resolution ● Crossed roller guides ● Linear motors Linear motors are electromagnetic direct drives. They dispense with mechanical components in the drivetrain and transfer the drive force directly and friction-free to the motion platform. The drives reach high velocities and accelerations. Ironless motors are particularly suitable for positioning tasks with the highest demands on precision because there is no undesirable interaction with the permanent magnets. This allows smooth running even at the lowest velocities and at the same time, there is no vibration at high velocities. Nonlinearity in control behavior is avoided and any position can be controlled easily. ● Highly accurate position measuring with incremental linear encoder ● Noncontact optical encoders measure the position directly at the platform with the greatest accuracy. Nonlinearity, mechanical play or elastic deformation have no influence on the measurement. Further travel ranges on request.
