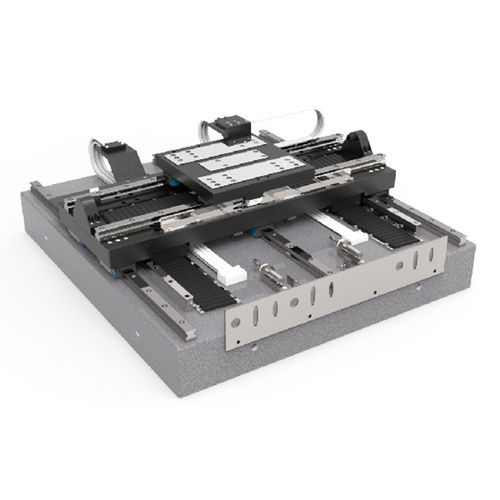

Linear stage E-GLMT-XY

XYlinear motor-drivenball bearing

E-GLMT-XY (High Precision Linear Motor Stage) XY Linear motor stage Short Description: ● Linear motors ● Linear motors are electromagnetic direct drives. They dispense with mechanical components in the drivetrain and transfer the drive force directly and friction-free to the motion platform. The drives reach high velocities and accelerations. Ironless motors are particularly suitable for positioning tasks with the highest demands on precision because there is no undesirable interaction with the permanent magnets. This allows smooth running even at the lowest velocities and at the same time, there is no vibration at high velocities. Nonlinearity in control behavior is avoided and any position can be controlled easily. The drive force can be set freely. Highly accurate position measuring with incremental linear encoder Noncontact optical encoders measure the position directly at the platform with the greatest accuracy. Nonlinearity, mechanical play or elastic deformation have no influence on the measurement. Further travel ranges on request. ● Medical industry. Laser cutting. Scanning. Biotechnology. Metrology. AOI (Automatic Optical Inspection). Laser marking. ● Travel range 250 mm × 250 mm or 360 mm × 360mm ● Accuracy to 1 µm ● Ironless 3-phase linear motor ● Velocity to 500 mm/s ● Incremental linear encoder with 4.88nm or 1 nm resolution ● Recirculating linear ball bearing
