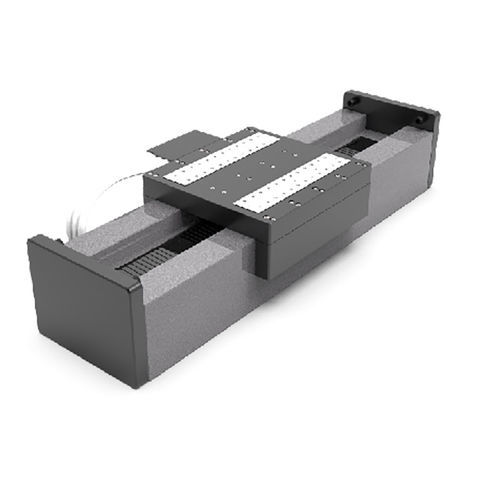

Linear positioning stage E-EC-ABL-X

XYmotorizedmulti-axis

E-EC-ABL-X One-dimensional air floating motion stage Short Description: ● Fully preloaded air-bearing ● Available with up to 1000 mm travel ● High-accuracy linear encoder feedback ● Complete noncontact design ● Ultra-smooth design for outstanding velocity stability features a smaller cross-section than typical air-bearing stages without sacrificing load capability. The large air-bearing surfaces provide excellent stiffness, allowing for heavy loading. Proprietary manufacturing techniques result in a stage with unsurpassed pitch, roll and yaw characteristics. Linear Motor Drive The driving force behind this stage is Precision-stage brushless linear servomotor. The utilizes an ironless forcer, which means there is zero cogging and no attractive forces – resulting in unrivaled smoothness of motion. Since the stage is friction-free and the motor has zero cogging, extremely fine resolutions are achievable. The noncontact air bearing, noncontact linear motor drive and noncontact feedback device ensure years of maintenance-free operation at the high performance levels that are expected of equipment. Because there is no mechanical contact between moving elements, the E-EC-ABL-X experiences no wear or reduction in performance over time. Service life is virtually unlimited, and since there is no lubrication – only clean, dry gas – air bearings are ideal for clean room and medical applications. ● filter and air preparation kits ● Single and multi-axis motion controller ● XY setups and individual configurations ● Base plates made of granite and systems for reducing vibration
