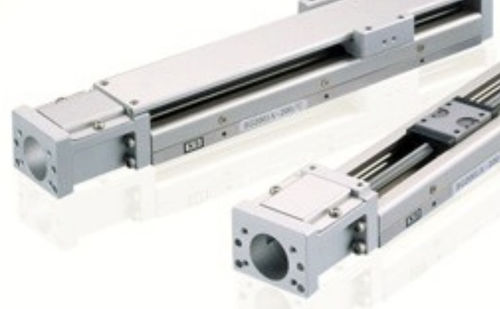

Linear actuator BG

electricball screwsteel

NB’s award-winning BG linear actuators combine the functionality of a linear slide guide and precision ball screw in a single component. Compact size and exceptional accuracy make BG single-axis actuators an ideal choice for many applications, including positioning, measurement, automotive and semiconductor equipment. BG linear actuator consists of a linear slide block, guide rail, and ball screws. They are housed in a U-shaped steel component and mounted to a sub table/motor bracket assembly. To accommodate a wide range of installations and applications, these high-speed linear actuators are available in various sizes and block type configurations. BG series linear actuators offer four key benefits: -Reduced installation time Adjustment-free design that integrates linear slide guide rail and precision ball screws. -High rigidity in a compact package They feature a unique U-shaped linear slide guide rail and a four-point contact configuration. -High positioning accuracy Precision-machined components such as a linear slide guide rail, linear guide block, and ball screw provide accuracy. -A space-saving design BG single-axis linear stage actuators can be used in compact applications where other positioning tables won’t fit. Sizes and Options BG linear motion actuators are available in six different sizes and multiple rail lengths. As well, four block configurations are available: single long, double long, single short and double short. All products are available in one of two accuracy grades: -High grade -Precision grade
