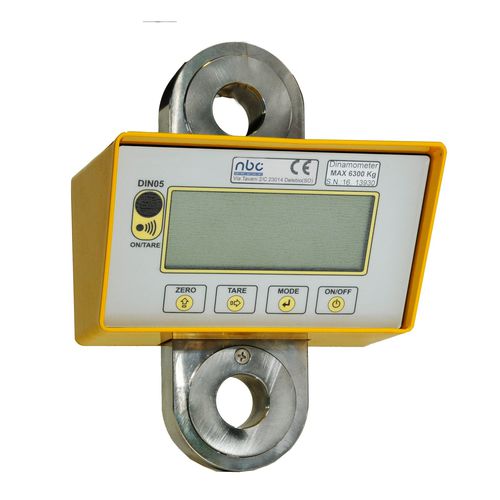

Digital dynamometer DIN 05 TXMwith remote readoutwith LCD display
Add to favorites
Compare this product
Characteristics
- Type
- digital
- Options and accessories
- with remote readout, with LCD display
- Rated load
Min.: 3,200 kg
(7,054.79 lb)Max.: 10,000 kg
(22,046.23 lb)
Description
Electronic dynamometer composed by a stainless steel traction load cell and an aluminium housing where is placed an electronic with a liquid crystal display 5 digit h=2,5, designed for weighing suspended loads with radio transmission to the hand receiver instrument model RX DI02 or RX02 PORT with transmission frequencies 868 MHz up to a distance of 50 meters.
EXCITATION
n°3 battery Type “AA” autonomy >180 hours)
SAFETY FACTOR
200% of full scale
PROTECTION CLASS
IP65
LOAD CELLS MATERIAL
Stainless Steel
HOUSING MATERIAL
Die-cast aluminum
