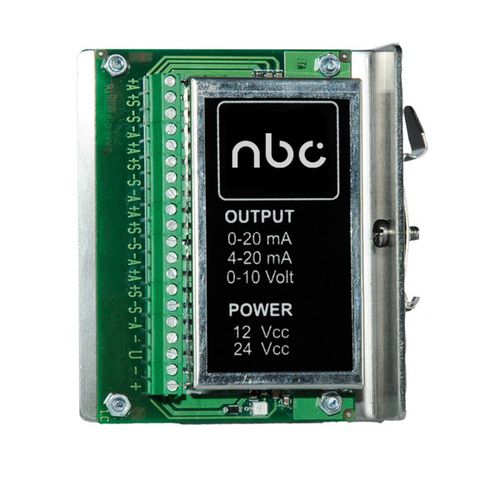

Analog weight transmitter ANA 126R

DIN rail mount

ANA 126R is an analog signal transmitter: 0÷10 V / ± 10V / 4 ÷20 mA, provided of a standard container for mounting on DIN rail which permit the weight calibration via trimmer and dip switches. EXCITATION 12 Vcc or 24 Vcc ± 15 % MEASUREMENT RANGE ±1mV/V, ±2mV/V, ±3mV/V selectable iwth micro switchers CONNECTIONS terminal blocks, pitch 3,81 mm OVERALL DIMENSIONS 25mm x 90mm x 80mm (l x h x p) PROTECTION DEGREE IP00 MOUNTING DIN rail profile OUTPUTS 0 - 10 V / 0 - 5 V 0 - 20 mA / 4 - 20 mA
