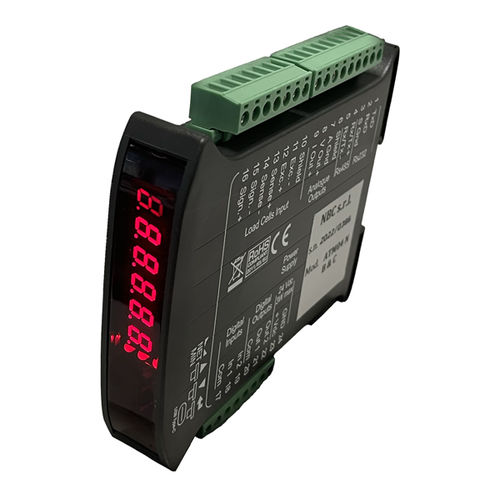

Digital load cell transmitter ATM 04 RS485
Add to favorites
Compare this product
Characteristics
- Other characteristics
- digital
Description
Digital transmitter for analogic load cell
EXCITATION
24 Vdc +-10% protected against reversepolarity.
MEASUREMENT RANGE
From -2.6 mV/V to +2.6 mV/V
CONNECTIONS
Removable screw terminal blocks, 5.08 mm pitch
OVERALL DIMENSIONS
110 x 120 x 23 mm (l x h x p) terminal blocks included
PROTECTION DEGREE
IP00
HOUSING MATERIAL
Blend PC/ABS self-extinguishing
MOUNTING
Support for DIN rail or OMEGA bar
