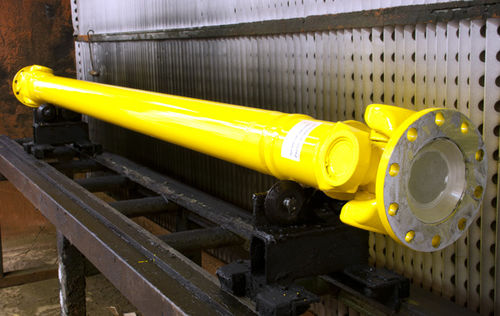

Driveshaft

Medium Duty Universal Driveshaft & Prop shafts Our range of Medium Duty Universal Driveshafts covers the SAE range from 1510 to 1900. The DIN range covers from 120 mm to 250 mm flange diameter. This gives a torque transmission range from 4000 Nm up to 24,000 Nm. Cross-serrated Flanges from 120 mm to 180 mm diameter also fall within the range and any combination of the above can be supplied fitted to any of our propshafts. Mechanics style joints for off highway applications and Spicer style half round and full round Joints are also available. As well as standard telescopic Driveshafts or propshafts we can also offer Double Joint assemblies, Fixed length, Mid Ship propshafts with support Bearings and Short Coupled Driveshafts. Applications requiring wide-angle flanges, long slip movement and balance grades to G6.3 tolerance can also be offered. Our in-house selection software allows us to offer complete Driveshaft systems with minimal torsional twist or customized stiffness to suit a particular system. Bearing lifetime, critical speed and t.v.a. studies can also be carried out
