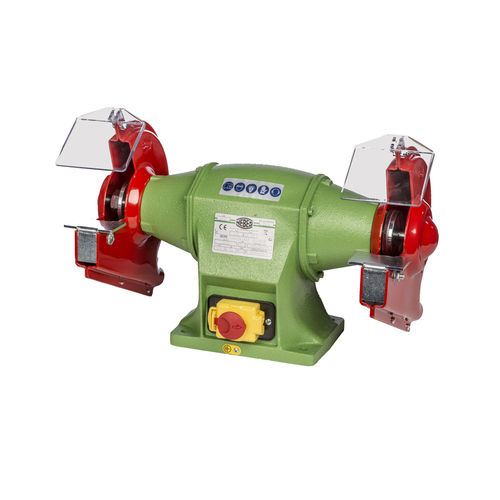

Electric bench grinder S-10

precisionfor cast iron

“S LINE” CAST IRON HEAVY-DUTY BENCH GRINDERS These machines, projected for continuous and intense use in industry, absorb and reduce the already low vibrations due to their weight and guaranteeing raised precision. The motors are constructed in low leakage German magnetic steel for higher production in any work situation. The grinding wheel clamp flanges are machined to guarantee a maximum parallelism during the coupling with abrasive wheels. Diameters and thickness of the flanges are superior to EC reference Norms. Sheet plate of different thicknesses are used for the chain guard: 2.5mm for 150mm diameters 3.0mm for 200mm and 250mm diameters 3.5mm for 300mm diameters 8.0* for 400mm diameters * (10mm grinding wheel side, 8mm diameter and 6mm on the external) On all machines in this category an optional low tension (24 V) power box is available. Available on request: high quality inverter speed control and progressive brake made in Japan. On demand, S and SA line can be equipped with 24V power switch BT1. Over 3 Hp BT1 switch box is standard for all the CE models. All the grinders with 3 phases motors are connected at 400 V but can be wired at 230 V on request. The single phase machines are connected at 230 V. Wheels not included.
