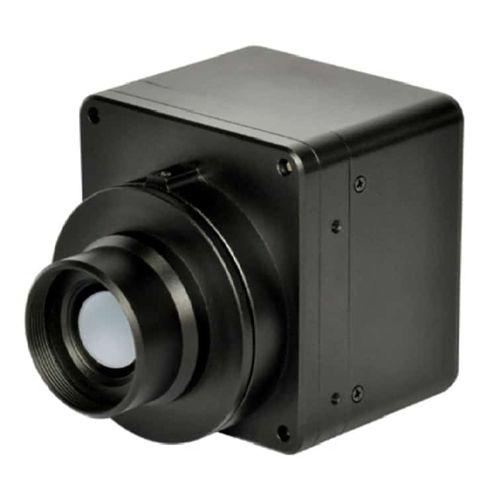

Medical camera TC160 (blackline)

for firefightingdigitaldigital

TC160 cores can be easily integrated into products or systems of (customer’s) design with multi-interface on the backside. A TC core may support the digital video output, composite video output, remote control on PC after connecting directly with your existing device/network. TC160 made similar performance except the IR resolution is different, meanwhile, we provide 4 different sales package for the user’s option: Lens-less packing, Optional-lens packing, Cover-less packing, Optional-lens packing, Cover-less packing and Naked-chipset packing (without lens & shell).The TC160 are convenient to be fixed into an existing CCTV system with M2.5 & 1/4”-20 mounts, also they can be integrated into various applications including night vision systems, driving vision enhancement, firefighting equipments, medical equipment, thermal sights, security & surveillance products, thermal process control, existing- and counting investigations, Drone- and octocopter platform installations and more. • Compact, lightweight package • 25-micron pixel pitch, NETD ~80mk • 50Hz frame rate for real time, crisp thermal image video • Auto|Manual brightness|Contrast adjustment • Video output in black & white or color palettes • Analog video output in PAL|NTSC selectable • Digital video output in LVDS, CMOS and BT.656 options • Multi-interface for easily embedded application • RS232|RS485 interface offers access to remote control on PC • Download newest software and remote updates with RS232|RS485 • Advanced image processing function brings incredible thermal image video • Professional control software enables users to create their applications
