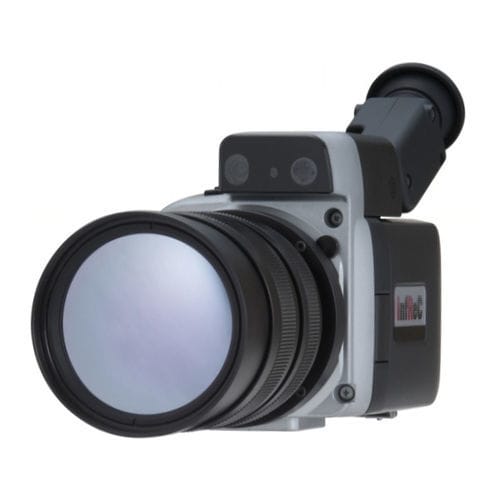

Industrial camera R300Z

digitalthermal imaginginfrared

Fusion of Infrared image and Integrated high resolution visual camera for IR/Vis Fusion Digital interval storage on internal RT-Memory Geometrical resolution provided by an excellent ZOOM-lens at 640×480 Pixels supported by irMOTION collection import and blurring effect improvement filter The first measurement Range provides high accuracy with brillant repeatibility at best homogenity conditions. Accuracy: +/-1K or +/-1% (of reading). This allows high sophisticated measurements at sensible objects. The exclusive uncooled uFPA infrared camera provides an outstanding sensor technology paired with a brilliant ZOOM-lens, large flexible LCD-Display, Laser pointer and integrated image analyzing features proviedes a temperature resolution of ~60mK at 30°C and 60Hz (~25mK at signal noise improvement) Thermal Accuracy: +/-1°C oder +/-1% of reading Measurement range: -40°C – 500°C Complete with Carry Case, Battery, Charger- and Power Supply including IR Measure- & Reporting Software for your PC on CD-ROM The IR-CameraNEC Thermal Imager R300 has the following outstanding properties: • real high resolution provided by Zoom-lens • Integrated high resolution visual camera for IR/Vis Fusion • Large, flexible LC-Display • I.F.O.V.: to 0.59 mrad • Laser pointer and integrated LED light for brighter photography • Focussing- and Zoom adjustement directly at lens screw capstand • USB interface for recording real-time sequences of Infrared scenes up to 60Hz • Measurement range from -40°C to 500°C • Thermal resolution: ~60mK at 60 Hz and 30°C (25mK S/N improvement) • Multilingual user interface full graphical GUI • Storage device is a standard SD memory card
