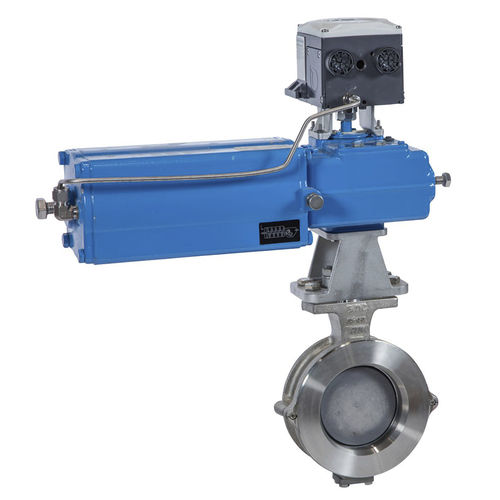

Butterfly valve L1 series

manualfor controlshut-off

Neles Neldisc series L1 and L2 triple eccentric disc valves operate both in control and shut-off applications, with close to equal percentage characteristics and superior tightness. L1 wafer type, L2 lug type Tripple offset, 2 piece shaft design One piece, full metal sealing without any resilient parts in pipeline High, long lasting tightness does not rely on differential pressure Unique, industry best disc valve control behavior with patented S-disc feature – possible to mount even on existing valve units Modular design minimizes the spare part inventory – same spares can be used in multiple Neles Neldisc designs Minimized actuator torque. Smaller actuator and lower piping stress Neldisc triple eccentric disc valves operate both in control and shut-off applications. Compact and light weight construction with Neles B-series actuator Suitable for vacuum service Very tight even in low dp's Extended rangeability to 90 degrees control applications In-built thermal and pressure compensation Optimized spare part inventory Suitable to dirty and abrasive services Applications Pulp and paper Water and waste water Refining cooling waters Oil and gas Petrochemicals ESD service Industrial gas Power generation
