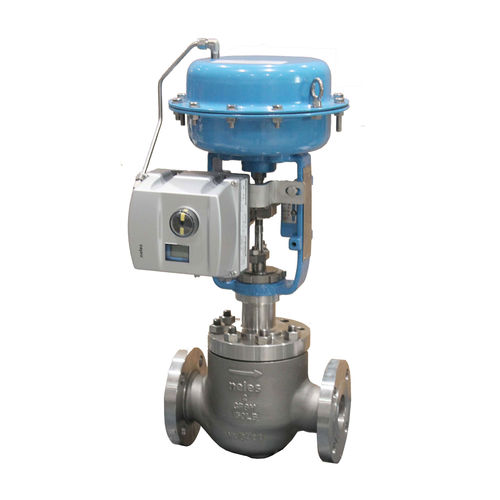

Globe valve GU seriesmanualfor controlflow control
Add to favorites
Compare this product
Characteristics
- Type
- globe
- Operation
- manual
- Function
- for control, flow control
- Media
- for oil, for chemical products, for gasoline, for oxygen
- Body
- micro
- Applications
- for industrial applications, for the chemical industry, cryogenic, for oil industry applications, for the gas industry
- Other characteristics
- ISO, standard, rugged, top-entry, SIL 3
- DN
Max.: 150 mm
(5.906 in)Min.: 15 mm
(0.591 in)- Temperature
Max.: 593 °C
(1,099 °F)Min.: -200 °C
(-328 °F)
Description

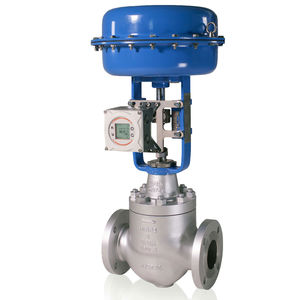

Neles series GU globe valves provide superior control performance and high reliability in wide range of applications. Standard units are equipped with Neles diaphragm actuators and Neles valve controllers for precise flow control, extended operation life and performance monitoring online.
Features
One piece body to minimize the leak paths
Top-entry construction and quick-change trim for easy maintenance
Rugged top-guided trim construction and hardened trim surfaces for extended lifetime as default
Wide variety of trim capacities and characteristics to optimize valve performance
Multi-hole Tendril™ trim to reduce noise or to eliminate cavitation
Micro trim for extreme low flow applications
Wide material selection available for different applications
Flanged and welding-end body options
Low emissions according to ISO 15848, bellows packing available
NACE material options
SIL 3 certified
API 607 fire certified
Special cleaning optional for oxygen, cryogenic etc. service
Applications
Oil and gas production
Petrochemicals
Chemicals
Power plants
Pulp & Paper
Industrial gas
LNG
