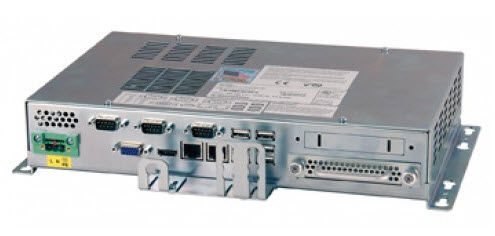

Embedded PC nPC300

Intel® Core™ i seriesSATAEthernet

nPC-Series Rugged High Performance "Node" Industrial PCs Without Displays The Nematron nPC-Series high performance industrial computers are designed for applications where the computer must be separate or remote from the monitor. With extensive I/O and available PCI expansion, the nPC-Series units are ideal for most industrial applications. Their compact profiles and high performance make these units ideal for many space limited applications 3 High Performance / Low Power Processor options to choose from: - Intel® Dual Core Celeron® P4500 (1.86 GHz, 2 M cache, 2 Threads) - Intel® i5 Dual Core 520M (2.4 GHz, 3 M cache, 4 Threads) - Intel® i7 Dual Core 620M (2.66 GHz, 4 M cache, 4 Threads) 2 GB DRAM (4 GB Optional) 80 GB Easily Removable SATA Solid State Drive - Optional larger SSD sizes and rotating Hybrid Hard Drive Extensive I/O Connectivity - Dual Gigabit (10/100/1000) Ethernet ports - 6 USB 2.0 ports - One RS-485/422 serial port - Two RS-232 serial ports - Analog Video port and HDMI port - supports dual video (Optional HDMI to DVI cable available - sold separately) Integrated 100-240 VAC power supply - 24 VDC optional
