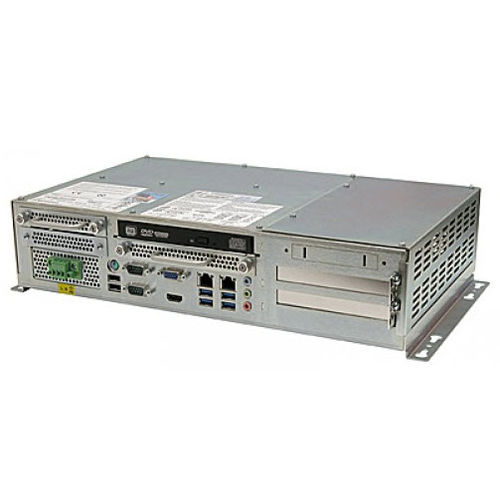

Embedded PC nPC400

Intel® Core™ i seriesSATAEthernet

nPC-Series Rugged High Performance "Node" Industrial PCs Without Displays The Nematron nPC-Series high performance industrial computers are designed for applications where the computer must be separate or remote from the monitor. With extensive I/O and available PCI expansion, the nPC-Series units are ideal for most industrial applications. Their compact profiles and high performance make these units ideal for many space limited applications 3 High Performance Processor options to choose from: - Intel® Mobile Celeron® 1020E (Dual Core, 2 Threads, 2.2 GHz, 1 M cache) - Intel® i5-3610ME (Dual Core, 4 Threads, 2.7-3.3 GHz, 3 M cache) - Intel® i7-3610QE (Quad Core, 8 Threads, 2.3-3.3 GHz, 6 M cache) Expansion Card options (8.75" max length): - Option 1: (1) PCI Slot and (1) PCIe x16 Slot - Option 2: (2) PCI Slots - Option 3: (1) PCIe x16 Slot and (1) PCIe x4 Slot (x1 connection) 80 GB Easily Removable SATA Solid State Drive - Optional larger SSD sizes or rotating Hybrid hard drive Second Drive Option - Optional RAID Level 1 (mirroring) configuration 1 Easily Removable SATA DVD-R/W drive Extensive I/O Connectivity - Dual Gigabit (10/100/1000) Ethernet ports - (2) USB 2.0 ports & (4) USB 3.0 ports - (1) RS-485/422/232 serial port (BIOS selectable) - (1) RS-232 serial port - (1) PS/2 port - Additional Analog Video port and HDMI port (supports dual video) 4 GB DRAM (up to 16 GB optional) Integrated 100-240 VAC power supply (24 VDC optional)
