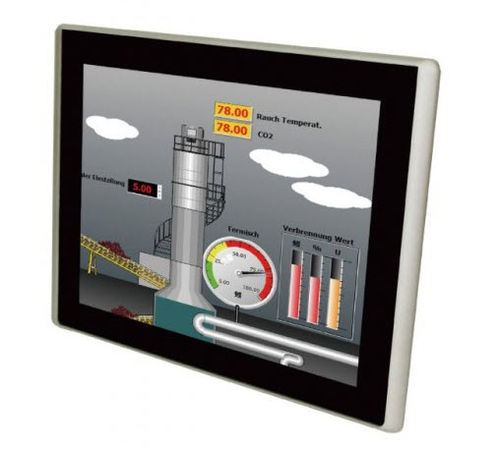

LCD panel PC NV-HMI-712P

touch screen12"800 x 600

The NVHMI-712P is a Fan-less PC Based Industrial Compact Size HMI incorporating a 12.1” LCD display with a Projected Capacitive Touch Screen and Intel Atom N2600 Processor technology suitable for HMI/SCADA applications. Build with a solid aluminum Die-casting chassis and IP65 flat front panel to meet the most demanding Industrial environments. Equipped with a standard on-board 2GB of system memory ensures agile processing performance while extensive I/O support for two ethernet ports, two communication ports RS-232/422/485 Serial, two USB 2.0 and line out audio port for further enhance flexibility. The logical design ensures easy access to install a Solid State Drive storage device which are separately available. The NVHMI can be delivered with Windows 7 factory installed. Standard Features of the NV-HMI-712P • Flat Front Panel with IP65 Design • 12.1" LCD SVGA Display with 800 x 600 resolution • Projected Capacitive Touch Screen • Atom Cedar View N2600 1.6GHz Dual Core CPU • On-board 2GB DDR3 800MHz memory • Two 10/100/1000 Mbps Ethernet port • Two USB 2.0 ports • COM1: RS-232/422/485 serial port • COM2: RS-232 serial port • Audio out phone jack • Input Voltage: 9-36VDC - 110/220VAC Power Adapter • Solid Aluminum Die-casting Chassis • Operating Temperature 0-50 Degrees Celsius • CE Certification • UL • RoHS Compliant
