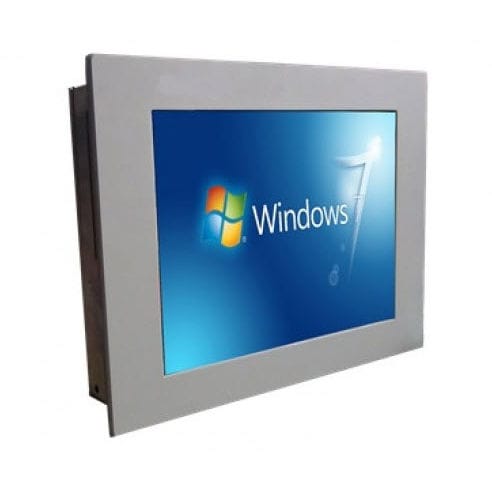

Panel PC with touch screen XP7102NF

5"1280 x 1024Intel® Atom N270

The fan-less version of the XP7000 Series Panel PC incorporating a 17.0” LED display and Intel Atom Processor technology is ideal for HMI/SCADA applications. Available with IP65 cast aluminium or stainless steel front panels and complimented with an all stainless steel chassis the XP7000 delivers an extensive feature set to meet the most demanding of applications. Equipped with a 500GB 2.5" SATA Hard Disk Drive as standard and options for a Slim-line Optical Drive, DVD-ROM and Compact Flash the system offers exceptional storage capacity. 2GB of system memory ensures agile processing performance while extensive I/O support for RS-232C/422/485 Serial, USB 2.0, Ethernet, Audio and External Monitor further enhance flexibility. The logical design ensures easy maintenance and includes an easy to change dust filter mechanism without the need to open the chassis. With all models meeting high shock and vibration specifications the XP7000 is ideal for a range of industrial and heavy duty commercial applications. Standard Features of the Fan-less XP7102NF Panel PCs 17.0" LED XGA TFT Display with 1280x1024 resolution 5-Wire Resistive Touch Screen Atom N270 CPU 2GB DDR2 SODIMM 500GB 2.5" HDD Two 10/100/1000 Mbps Ethernet port Four External USB 2.0 ports One RS-232C/422/485 serial port Three RS-232C serial ports Audio in/out One PCI Expansion Slot Voltage: 12VDC/100-240 VAC full range Power Adapter Stainless Steel Chassis Operating Temperature 0-45 Degrees Celsius · CE Certification RoHS Compliant IP-65 Front when properly installed
