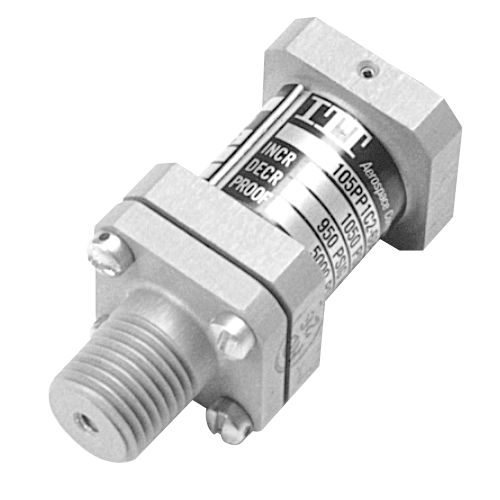

Diaphragm pressure switch 105PdifferentialO-ringthreaded
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Pressure type
- differential
- Mounting
- threaded, O-ring
- Material
- stainless steel, aluminum, PVC
- Other characteristics
- miniature
- Pressure range
Max.: 2,000 psi
Min.: 2 psi
- Burst pressure
3,000 psi, 5,000 psi
- Process temperature
Max.: 149 °C
(300 °F)Min.: -40 °C
(-40 °F)
Description
All purpose miniature tamper proof switch, extremely light weight and durable construction. Has efficient Nega-Rate® Belleville disc spring sensing mechanism. Small size improves vibration and shock resistance.
Specifications
Deadband (Differential): The deadband can be selected anywhere from the minimum indicated to a maximum of 45% of the set point.
Electrical Connection: PVC insulated 18 AWG leads 18" long
*Temperature limits change with O-Ring selection
Shipping Weight: Approximately 3 ounces
