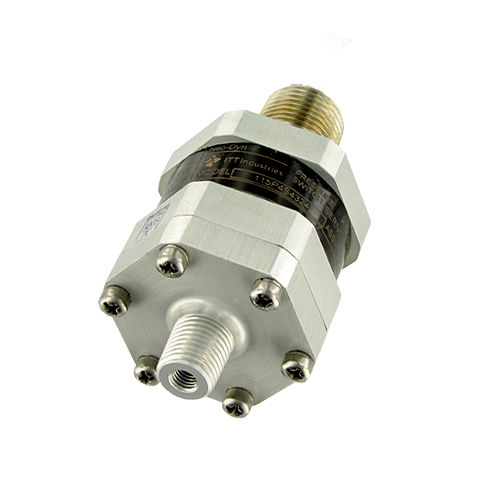

Diaphragm pressure switch 115PdifferentialO-ringNPT 1/2
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Pressure type
- differential
- Mounting
- O-ring
- Process connection
- NPT 1/4, NPT 1/2
- Material
- stainless steel, aluminum
- Protection level
- NEMA 4X
- Other characteristics
- compact
- Pressure range
Min.: 1.5 psi
Max.: 600 psi
- Burst pressure
Min.: 0 psi
Max.: 1,000 psi
- Process temperature
Min.: -40 °C
(-40 °F)Max.: 149 °C
(300 °F)
Description
Compact, versatile pressure switch with built to order set points. This easy to install switch features the efficient NegaRate® Belleville disc spring for the set and forget application.
Specifications
Deadband (Differential): The deadband can be selected anywhere from .5 psig or 8% (whichever is greater) to 45% of the set point
Electrical: Snap action electrical switch recognized by Underwriters’ Laboratories, Inc. and CSA International
*Temperature limits change with O-Ring selection
Shipping Weight: Approximately 6 ounces
