Diaphragm pressure switch 131P
relativethreadedO-ring

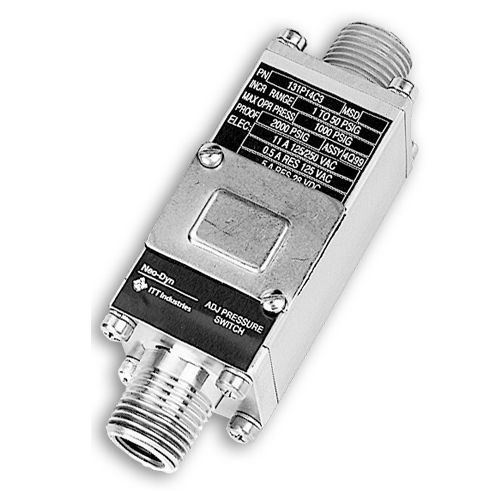

Diaphragm pressure switch - 131P - Neo-Dyn - relative / threaded / O-ring
Diaphragm pressure switch - 131P - Neo-Dyn - relative / threaded / O-ring
Diaphragm pressure switch - 131P - Neo-Dyn - relative / threaded / O-ring - image - 2
Diaphragm pressure switch - 131P - Neo-Dyn - relative / threaded / O-ring - image - 3
Diaphragm pressure switch - 131P - Neo-Dyn - relative / threaded / O-ring - image - 4
Add to favorites
Compare this product

Go to the Neo-Dyn website for more information

Characteristics

Technology
diaphragm
Pressure type
relative
Mounting
threaded, O-ring
Process connection
NPT 1/4, NPT 1/2
Material
stainless steel, aluminum
Protection level
IP65, NEMA 4X
Applications
for hydraulic applications, for pneumatic applications
Other characteristics
adjustable, compact, stainless steel, IP65
Pressure range

Max.: 1,000 psi

Min.: 1 psi

Burst pressure

2,000 psi

Process temperature

Max.: 149 °C
(300 °F)

Min.: -40 °C
(-40 °F)

Description

Compact, adjustable pressure switch for pneumatic or low impulse hydraulic process applications. Using our efficient Nega-Rate® Belleville disc spring, we offer superior set point stability and vibration resistance. The 131P series pressure switch also has a selectable deadband feature which can be preset to fit most any application. Specifications Electrical Listings: Snap action electrical switch recognized by Underwriters’ Laboratories, Inc. and CSA International * Temperature limits change with O-Ring selection Adjustment: Internal, slotted adjustment wheel Shipping Weight: Approximately 20 ounces
