Diaphragm pressure switch 132P
relativeO-ringthreaded

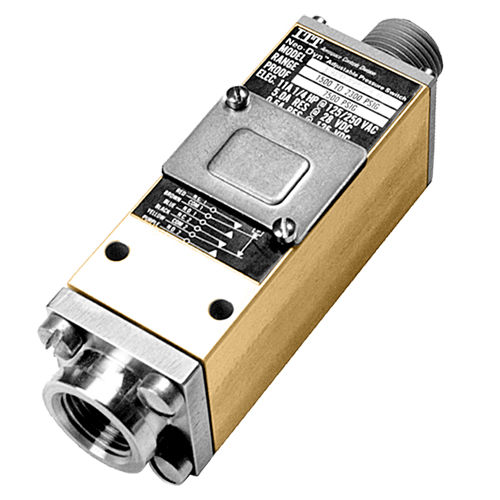

Diaphragm pressure switch - 132P - Neo-Dyn - relative / O-ring / threaded
Diaphragm pressure switch - 132P - Neo-Dyn - relative / O-ring / threaded
Diaphragm pressure switch - 132P - Neo-Dyn - relative / O-ring / threaded - image - 2
Diaphragm pressure switch - 132P - Neo-Dyn - relative / O-ring / threaded - image - 3
Add to favorites
Compare this product

Go to the Neo-Dyn website for more information

Characteristics

Technology
diaphragm
Pressure type
relative
Mounting
threaded, O-ring
Process connection
NPT 1/4, NPT 1/2
Material
stainless steel
Protection level
SIL, IP65, NEMA 4X
Applications
for hydraulic applications, for pneumatic applications
Other characteristics
adjustable, compact, stainless steel, IP65
Pressure range

Min.: 1 psi

Max.: 4,000 psi

Burst pressure

2,000 psi, 6,000 psi

Process temperature

Min.: -40 °C
(-40 °F)

Max.: 121 °C
(250 °F)

Description

Compact, adjustable pressure switch for pneumatic or low impulse hydraulic process applications. Efficient Nega-Rate® Belleville disc spring for set point stability and vibration resistance. Specifications Electrical: Snap action electrical switch recognized by Underwriters’ Laboratories, Inc. and CSA International * Temperature limits change with O-Ring selection Adjustment: Internal, slotted adjustment nut with range scale Shipping Weight: Approximately 20 ounces
