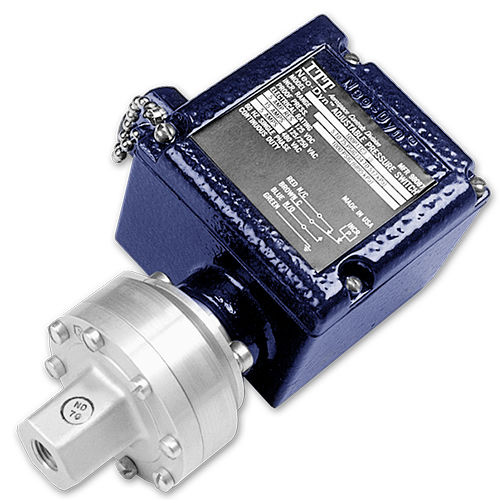

Piston pressure switch 200P

relativeO-ringaluminum

Versatile Nega-Rate® Belleville disc spring pressure switch for a wide range of applications. Series 200P (piston sensor) for hydraulic applications up to 10000 psig system pressure. Specifications Electrical: Snap action electrical switch recognized by Underwriters’ Laboratories, Inc. and CSA International Electrical Connection: 1/2 NPT female conduit connection with terminal block Pressure Connection: Wetted Material 1 1/4 NPT Female *Temperature limits change with O-Ring selection Adjustment: Concealed wrench flat adjustment with range scale Shipping Weight: Approximately 3 pounds Electrical Form C 15 amp at 125 or 250 VAC; 1/8 hp at 125 VAC; 1/4 hp at 250 VAC; .5 amp résistive, .04 amp inductive at 125 VDC CC 11 amp, 1/4 hp at 125 or 250 VAC; 5 amp résistive, 3 amp inductive at 28 VDC; .5 amp résistive at 125 VDC Z 15 amp at 125 or 250 VAC; 1/4 hp at 125 VAC; 1/2 hp at 250 VAC; 1 amp résistive, .5 amp inductive at 125 VDC Enclosure 3 Meets or exceeds the requirements of N EMA Type 3, 3R, 3S, 4, 4X and 13 Miscellaneous A Epoxy paint exterior — extra protection for severe environments B Viton O-Ring C EPR O-Ring D SIL approval and marking, per IEC61508 (includes FMEA report) E 7/16"-20 SAE port L Néon indicator light — 115 VAC M Gold electrical contacts for extremely low current applications
