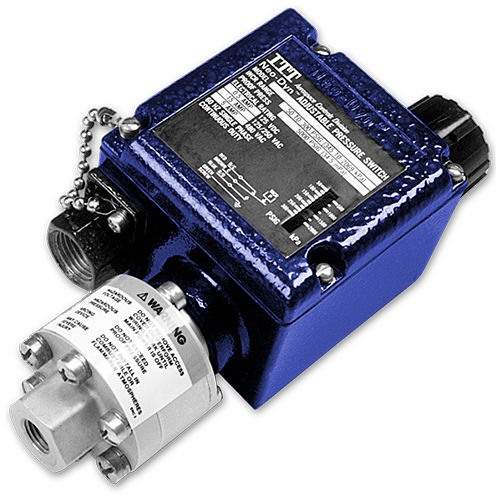

Piston pressure switch 201P relativeO-ringthreaded
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Pressure type
- relative
- Mounting
- threaded, O-ring
- Process connection
- NPT 1/2
- Material
- aluminum
- Protection level
- SIL, IP65, NEMA 4X, NEMA 13
- Applications
- for hydraulic applications
- Other characteristics
- adjustable, IP65
- Pressure range
Max.: 10,000 psi
Min.: 14 psi
- Burst pressure
4,500 psi, 10,000 psi, 15,000 psi
- Process temperature
Max.: 149 °C
(300 °F)Min.: -40 °C
(-40 °F)
Description
Versatile Nega-Rate® Belleville disc spring pressure switch for a wide range of applications. Series 201P (piston sensor) for hydraulic applications up to 10000 psig system pressure. Externally adjustable for convenient set point changes.
Specifications
Electrical: Snap action electrical switch recognized by Underwriters’ Laboratories, Inc. and CSA International
*Temperature limits change with O-Ring selection
Adjustment: External screwdriver slot adjustment and range scale
Shipping Weight: Approximately 3 pounds
Catalogs
Neo-Dyn Industrial Catalog
139 Pages
