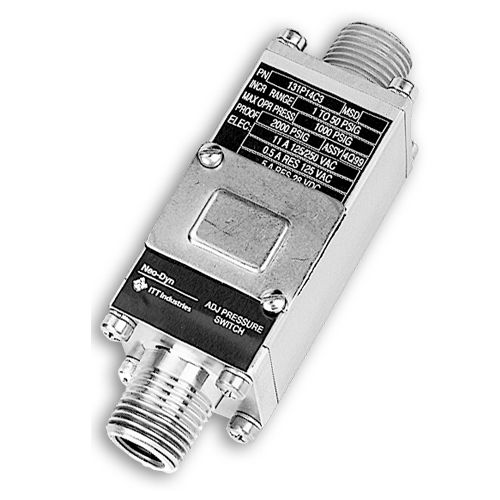

Piston pressure switch 231P
relativeO-ringthreaded

Piston pressure switch - 231P - Neo-Dyn - relative / O-ring / threaded
Piston pressure switch - 231P - Neo-Dyn - relative / O-ring / threaded
Piston pressure switch - 231P - Neo-Dyn - relative / O-ring / threaded - image - 2
Piston pressure switch - 231P - Neo-Dyn - relative / O-ring / threaded - image - 3
Add to favorites
Compare this product

Go to the Neo-Dyn website for more information

Characteristics

Technology
piston
Pressure type
relative
Mounting
threaded, O-ring
Material
stainless steel, aluminum
Protection level
SIL, IP65, NEMA 4X, NEMA 13
Applications
for hydraulic applications
Other characteristics
adjustable, compact, high-pressure, stainless steel, IP65
Pressure range

Min.: 250 psi

Max.: 12,500 psi

Burst pressure

5,000 psi, 8,000 psi, 10,000 psi, 15,000 psi

Process temperature

Min.: -40 °C
(-40 °F)

Max.: 149 °C
(300 °F)

Description

Compact, adjustable pressure switch for high pressure hydraulic process applications. Using our efficient Nega-Rate® Belleville disc spring, we offer superior set point stability and vibration resistance. Specifications Electrical Listings: Snap action electrical switch recognized by Underwriters’ Laboratories, Inc. and CSA International Adjustment: Internal, slotted adjustment nut Shipping Weight: Approximately 20 ounces
