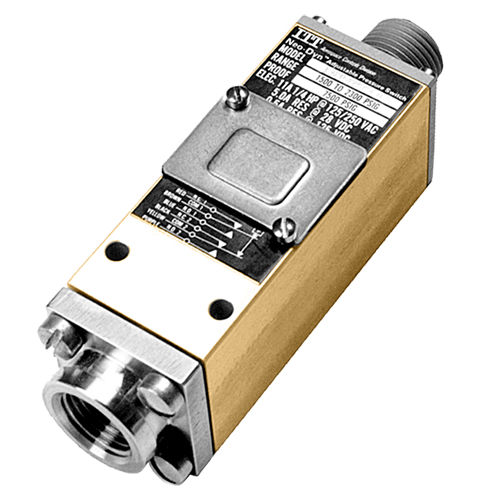

Piston pressure switch 232P relativeO-ringthreaded
Add to favorites
Compare this product
Characteristics
- Technology
- piston
- Pressure type
- relative
- Mounting
- threaded, O-ring
- Process connection
- NPT 1/4, NPT 1/2, G 1/2
- Material
- stainless steel
- Protection level
- SIL, IP65, NEMA 4X, NEMA 13
- Applications
- for hydraulic applications
- Other characteristics
- adjustable, compact, high-pressure
- Pressure range
Min.: 0 psi
Max.: 12,500 psi
- Burst pressure
7,500 psi, 9,750 psi, 13,500 psi, 15,000 psi
- Process temperature
Min.: -40 °C
(-40 °F)Max.: 121 °C
(250 °F)
Description
Compact, adjustable pressure switch for high pressure hydraulic process applications. Efficient Nega-Rate® Belleville disc spring for set point stability and vibration resistance.
Specifications
Electrical: Snap action electrical switch listed by Underwriters’ Laboratories, Inc. and CSA International
* Temperature limits change with O-Ring selection
Adjustment: Internal, slotted adjustment nut
with range scale
Shipping Weight: Approximately 20 ounces
