Diaphragm pressure switch 100P
relativeO-ringstainless steel

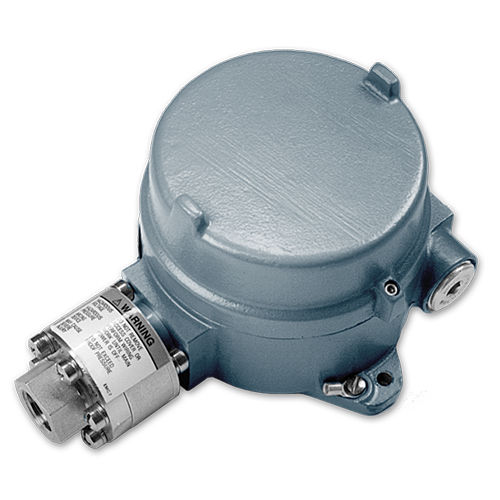

Diaphragm pressure switch - 100P - Neo-Dyn - relative / O-ring / stainless steel
Diaphragm pressure switch - 100P - Neo-Dyn - relative / O-ring / stainless steel
Diaphragm pressure switch - 100P - Neo-Dyn - relative / O-ring / stainless steel - image - 2
Diaphragm pressure switch - 100P - Neo-Dyn - relative / O-ring / stainless steel - image - 3
Diaphragm pressure switch - 100P - Neo-Dyn - relative / O-ring / stainless steel - image - 4
Add to favorites
Compare this product

Go to the Neo-Dyn website for more information

Characteristics

Technology
diaphragm
Pressure type
relative
Mounting
O-ring
Material
stainless steel, aluminum
Protection level
NEMA 4X
Applications
for hydraulic applications, for pneumatic applications
Other characteristics
adjustable, stainless steel
Pressure range

Min.: 2 psi

Max.: 3,000 psi

Burst pressure

1,000 psi, 5,000 psi

Process temperature

Min.: -40 °C
(-40 °F)

Max.: 149 °C
(300 °F)

Description

Versatile Nega-Rate® Belleville disc spring pressure switch for use in hazardous areas. Applications include pneumatic and low impulse hydraulics up to 3000 psig system pressures. Various wetted material selections make this switch ideal for your specific requirement. Specifications Electrical: Snap action electrical switch listed by Underwriters Laboratories, Inc., SIRA and CSA International Pressure Connection: Adjustment: Tool free internal adjustment with range scale Shipping Weight: Approximately 6 pounds
