Diaphragm pressure switch 100P
relativeO-ringNPT 1/2

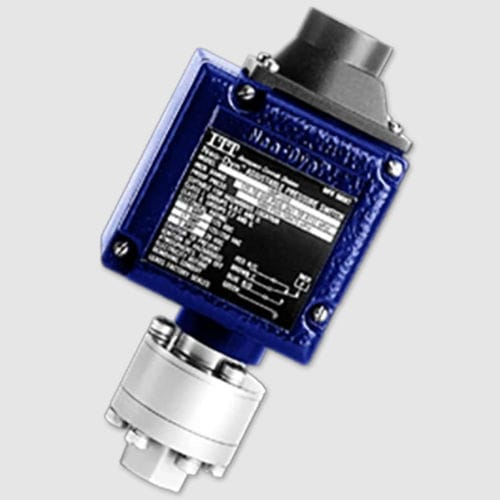

Diaphragm pressure switch - 100P - Neo-Dyn - relative / O-ring / NPT 1/2
Diaphragm pressure switch - 100P - Neo-Dyn - relative / O-ring / NPT 1/2
Diaphragm pressure switch - 100P - Neo-Dyn - relative / O-ring / NPT 1/2 - image - 2
Diaphragm pressure switch - 100P - Neo-Dyn - relative / O-ring / NPT 1/2 - image - 3
Diaphragm pressure switch - 100P - Neo-Dyn - relative / O-ring / NPT 1/2 - image - 4
Add to favorites
Compare this product

Go to the Neo-Dyn website for more information

Characteristics

Technology
diaphragm
Pressure type
relative
Mounting
O-ring
Process connection
NPT 1/2
Material
stainless steel, aluminum, PVC
Protection level
IP66, NEMA 4X, NEMA 13, NEMA 7, NEMA 9
Applications
for hydraulic applications, for pneumatic applications
Other characteristics
adjustable, stainless steel, IP66
Pressure range

Max.: 3,000 psi

Min.: 2.3 psi

Burst pressure

1,000 psi, 5,000 psi

Process temperature

Max.: 149 °C
(300 °F)

Min.: -40 °C
(-40 °F)

Description

Versatile Nega-Rate® Belleville disc spring pressure switch for use in hazardous areas. Series 100P (diaphragm sensor) for pneumatic and low impulse hydraulics up to 3000 psig system pressure. Specifications Electrical: Snap action electrical switch assembly listed by Underwriters’ Laboratories, Inc., FM Approval and CSA International Electrical Connection: 1/2 NPT male conduit connection with PVC insulated 18 AWG, 18" long leads Pressure Connection: Wetted Material 1 1/4 NPT Female Wetted Material 4,5, 7 and 9 1/2 NPT Female Adjustment: Concealed wrench flat adjustment with range scale Shipping Weight: Approximately 3 pounds
