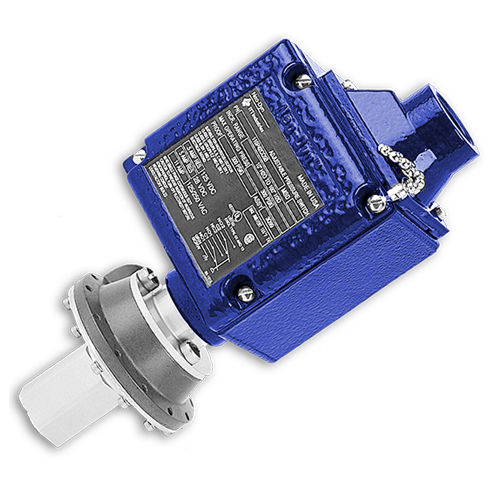

Diaphragm pressure switch 110P relativeterminal blockNPT 1/2
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Pressure type
- relative
- Electrical connection
- terminal block
- Process connection
- NPT 1/2
- Material
- stainless steel, aluminum
- Protection level
- explosion-proof, IP65
- Other characteristics
- adjustable, stainless steel, low-pressure, IP65
- Pressure range
Min.: 2.75 psi
Max.: 300 psi
- Burst pressure
500 psi
- Process temperature
Min.: -40 °C
(-40 °F)Max.: 149 °C
(300 °F)
Description
Sensitive Nega-Rate® Belleville spring adjustable pressure switch for low pressure applications. Unit has been designed for Division 2 explosion proof environments and is weather proof, making it suitable for all of your Division 2 applications.
Specifications
Electrical: Snap action electrical switch assembly listed by Underwriters Laboratories, Inc., FM Approval and CSA International
Electrical Connection: 3/4 NPT female conduit connection with terminal block
Adjustment:
Concealed wrench flat adjustment with range scale
Shipping Weight: Approximately 3 pounds
