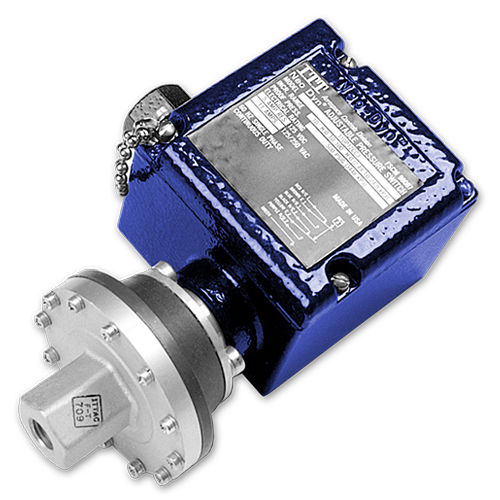

Diaphragm pressure switch 110P relativeO-ringNPT 1/2
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Pressure type
- relative
- Mounting
- O-ring
- Process connection
- NPT 1/4, NPT 1/2
- Material
- stainless steel, aluminum
- Protection level
- explosion-proof, IP66, NEMA 4X, NEMA 7, NEMA 9, NEMA 13
- Other characteristics
- adjustable, stainless steel, low-pressure, IP66
- Pressure range
Max.: 300 psi
Min.: 2.75 psi
- Burst pressure
500 psi
- Process temperature
Max.: 149 °C
(300 °F)Min.: -40 °C
(-40 °F)
Description
Sensitive Nega-Rate® Belleville spring adjustable pressure switch for low pressure applications.
Specifications
Electrical: Snap action electrical switch listed by Underwriters’ Laboratories, Inc., FM Approval and CSA International
Adjustment: Concealed wrench flat adjustment with range scale
Shipping Weight: Approximately 3 pounds
*Temperature limits change with O-Ring selection. See Electrical Assembly specification sheet for Temperature Class Ratings.
