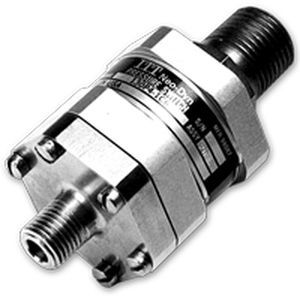

Diaphragm pressure switch 115PdifferentialO-ringthreaded
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Pressure type
- differential
- Mounting
- threaded, O-ring
- Process connection
- NPT 1/4, NPT 1/2
- Material
- stainless steel, steel
- Protection level
- explosion-proof, IP66, NEMA 4X, NEMA 7, NEMA 9, NEMA 13
- Other characteristics
- compact
- Pressure range
Max.: 600 psi
Min.: 1.5 psi
- Burst pressure
Max.: 1,000 bar
(14,503.77 psi)Min.: 0 bar
(0 psi)- Process temperature
Max.: 149 °C
(300 °F)Min.: -40 °C
(-40 °F)
Description
Compact, versatile pressure switch with built to order set points. This easy to install switch features the efficient NegaRate® Belleville disc spring for the set and forget application.
Specifications
Deadband (Differential): The deadband can be selected anywhere from 1.5 psig or 8% (whichever is greater) to 45% of the set point
Electrical: Snap action electrical switch assembly listed by Underwriters’ Laboratories, Inc., Factory Mutual and CSA International
Shipping Weight: Approximately 14 ounces
*Temperature limits change with O-Ring selection. See Electrical Assembly specification sheet for Temperature Class Ratings.
