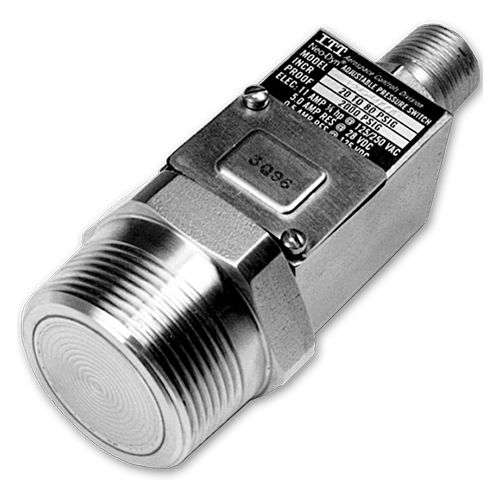

Flush diaphragm pressure switch 123Pdiaphragmrelativethreaded
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm, flush diaphragm
- Pressure type
- relative
- Mounting
- threaded
- Process connection
- NPT 1/2
- Material
- stainless steel
- Protection level
- explosion-proof, IP66, NEMA 4X, NEMA 7, NEMA 9, NEMA 13
- Other characteristics
- adjustable, compact, stainless steel, explosion-proof
- Pressure range
Max.: 3,000 psi
Min.: 1 psi
- Burst pressure
2,000 psi, 5,000 psi
- Process temperature
Max.: 121 °C
(250 °F)Min.: -40 °C
(-40 °F)
Description
Compact, adjustable pressure switch for low to mid-range process applications. Efficient Nega-Rate® Belleville disc spring for set point stability and vibration resistance. 316 stainless steel exterior and interior plus hermetically sealed, explosion-proof electrical for atmospheric protection. The flush mount (welded diaphragm) process connection makes this switch ideal for viscous process applications.
Specifications
Electrical: Snap action electrical switch assembly listed by Underwriters’ Laboratories, Inc., FM Approval and CSA International
Adjustment: Internal, slotted adjustment nut with range scale
Shipping Weight: Approximately 2.5 pounds
Catalogs
Neo-Dyn Industrial Catalog
139 Pages
